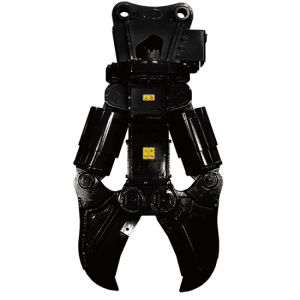

Demolition shears with shear-type jaws are primarily designed for dismantling large steel structural components in buildings, such as scrapped trucks, oil tanks, pressure vessels, and steel-structured workshops. Compared to scrap shears, demolition shears typically feature a wider jaw opening and deeper cutting capacity, delivering greater cutting force. These tools are ideal for dismantling large steel structures, offering exceptional versatility and high efficiency.
| Specifications | Unit | FC08D SH | FC15D SH | FC20D SH |
| Maximum Opening | mm | 380 | 770 | 900 |
| Cutting Force (Center) | kN | 495 | 1550 | 2360 |
| Operating Pressure (Cylinder) | kg/cm² | 180-250 | 300-350 | 300-350 |
| Oil Flow (Cylinder) | L/min | 50-100 | 140-240 | 180-240 |
| Operating Pressure (Motor) | kg/cm² | 60-90 | 120-160 | 120-160 |
| Oil Flow (Motor) | L/min | 20-30 | 30-50 | 30-50 |
| Suitable Carriers | ton | 6-13 | 17-25 | 26-35 |
| Rotation | Hydraulic rotation, freely rotates at any angle up to 360 degrees. | |||
